400ml Manual dual component 2k applicator guns
Hand Operated Dual Dispensers
Manual cartridge gun dispensers are designed for the controlled application of two component epoxies, silicones and other materials. Use these high quality manual guns with industry standard 400ml dual epoxy type cartridges.
For adhesives which are supplied in two part, side-by-side syringe cartridges that push the adhesive through a static mixing nozzle. The lightweight portability and durable construction of the manual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. Manual guns are available in different sizes with four mix ratios (1:1, 2:1, 4:1 and 10:1).
The dual cartridge is clipped into the gun handle. The plunger rod is inserted and pushes the pistons down in the cartridge to provide a controlled flow. Our guns are safe and hygienic, reducing risk of operator contact with the materials being dispensed. They fit comfortably into the hand for use over long periods of time and minimum risk of repetitive strain injury. The higher number of maximum thrust is for medium to high viscosity materials. Lower number for low viscosity materials. dual component 400ml manual 2k applicator guns adhesive dispensing sulzer
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
400ML 1:1/2:1 RATIO GUN
400ML 1:1/2:1 RATIO GUN
400ML 1:1/2:1 RATIO GUN
Part Code: DM400-01
For Cartridge Size: 400ml
For Cartridge Ratio: 1:1/2:1
Maximum Thrust: 6.4kN (640kg)
Weight: 1.85kg
400ML 4:1 RATIO GUN
400ML 1:1/2:1 RATIO GUN
400ML 1:1/2:1 RATIO GUN
Part Code: DM400-04
For Cartridge Size: 400ml
For Cartridge Ratio: 4:1
Maximum Thrust: 6.4kN (640kg)
Weight: 1.85kg
400ML 10:1 RATIO GUN
400ML 1:1/2:1 RATIO GUN
400ML MULTI RATIO GUN
Part Code: DM400-10
For Cartridge Size: 400ml
For Cartridge Ratio: 10:1
Maximum Thrust: 6.4kN (640kg)
Weight: 1.85kg
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
Part Code: VBM400MR
For Cartridge Size: 400ml
For Cartridge Ratio: 1:1/2:1/4:1/10:1
Maximum Thrust: 3.5kN (350kg)
Weight: 1.7kg
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
Part Code: VBM200
For Cartridge Size: 400ml
For Cartridge Ratio: 1:1/2:1/4:1/10:1
Maximum Thrust: 3.5kN (350kg)
Weight: 1.5kg
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
Part Code: VBM400XMR
For Cartridge Size: 400ml
For Cartridge Ratio: 1:1/2:1/4:1/10:1
Maximum Thrust: 4.5kN (450kg)
Weight: 1.8kg
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
Part Code: BG400-1
For Cartridge Size: 400ml/ 200ml
For Cartridge Ratio: 1:1/2:1/4:1/10:1
Maximum Thrust: 4.6kN (460kg)
Weight: 1.9kg
400ML 1:1 RATIO GUN
400ML MULTI RATIO GUN
400ML MULTI RATIO GUN
Part Code: VBM200X
For Cartridge Size: 400ml/ 200ml
For Cartridge Ratio: 1:1
Maximum Thrust: 4.5kN (450kg)
Weight: 1.9kg
400ML 1:1 RATIO GUN
400ML MULTI RATIO GUN
400ML 1:1 RATIO GUN
Part Code: AD400-1
For Cartridge Size: 400ml
For Cartridge Ratio: 1:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
400ML 2:1 RATIO GUN
400ML 2:1 RATIO GUN
400ML 1:1 RATIO GUN
Part Code: AD400-2
For Cartridge Size: 400ml
For Cartridge Ratio: 2:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
400ML 3:1 RATIO GUN
400ML 2:1 RATIO GUN
400ML 3:1 RATIO GUN
Part Code: AD400-3
For Cartridge Size: 400ml
For Cartridge Ratio: 3:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
400ML 4:1 RATIO GUN
400ML 2:1 RATIO GUN
400ML 3:1 RATIO GUN
Part Code: AD400-4
For Cartridge Size: 400ml
For Cartridge Ratio: 4:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
400ML 5:1 RATIO GUN
400ML 10:1 RATIO GUN
400ML 10:1 RATIO GUN
Part Code: AD400-5
For Cartridge Size: 400ml
For Cartridge Ratio: 5:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
400ML 10:1 RATIO GUN
400ML 10:1 RATIO GUN
400ML 10:1 RATIO GUN
Part Code: AD400-10
For Cartridge Size: 400ml
For Cartridge Ratio: 10:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
490ML 10:1 RATIO GUN
400ML 10:1 RATIO GUN
490ML 10:1 RATIO GUN
Part Code: AD490-10
For Cartridge Size: 490ml
For Cartridge Ratio: 10:1
Maximum Thrust: 1.25kN (125kg)
Weight: 1.1kg
400ml Dual Cartridge Sets
400ml Dual Cartridge Sets
400ml Dual Cartridge Sets
Full range of dual component 400ml cartridge and plunger kits in mix ratios of 1:1, 2:1, 4:1 and 10:1. C-System and F-System types held in stock.

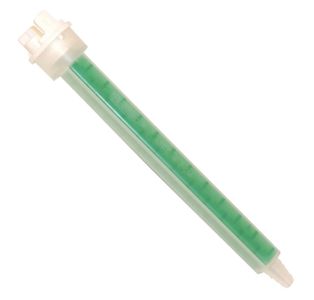

Static Mixer Nozzles
400ml Dual Cartridge Sets
400ml Dual Cartridge Sets
Nozzles for use on 400ml dual component cartridges. Square body and round body types for all ratios. Bell mouth, screw thread or cap style held in stock.
