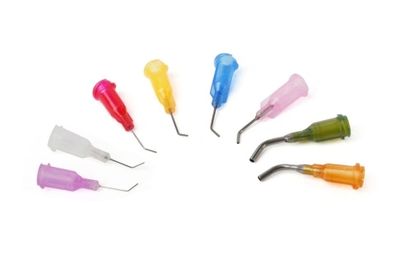

General Purpose Dispensing Tips

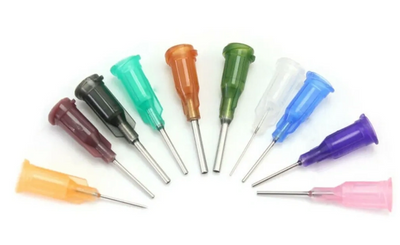

Blunt End High Precision Tips
Precision needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. In addition they are silicone and chloride free. Designed to dispense most viscosity fluids and adhesives and safe for use to 100 psi. Standard tube lengths of 0.25", 0.50", 1.00", 1.50" and 2.0". In gauge diameter sizes from 12 to 34. * Custom tube lengths of 3", 4" and 5" are available.
Precision blunt end tips are also available on our websites with a 30, 45, 60 or 90 degree angle bend which are suitable for applying fluids inside the bore of products or under components.
All needle tips are safe to use up to 100 psi air pressure. Luer lock attachment ensures a twist-on to tips and fittings which is safe for use under high pressures. Silicone-free materials. Supplied in sealed boxes of 50 with labels and batch codes.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
All precision dispensing tips are available to order securely from our web shops direct from stock.
Polypropylene Hub To Stainless Steel Tube
12G Blue Precision TiP 1/4"
12G Blue Precision TiP 1/4"
12G Blue Precision TiP 1/4"
Part Code: AD712025PK
Hub Colour: Blue
Tube Length: 0.25" - 6.35mm
ID: 0.089" - 2.26mm
OD: 0.109" - 2.77mm
12G Blue Precision Tip 1/2"
12G Blue Precision TiP 1/4"
12G Blue Precision TiP 1/4"
Part Code: AD712050PK
Hub Colour: Blue
Tube Length: 0.50" - 12.70mm
ID: 0.089" - 2.26mm
OD: 0.109" - 2.77mm
12G Blue Precision Tip 1"
12G Blue Precision TiP 1/4"
12G Blue Precision Tip 1.5"
Part Code: AD712100PK
Hub Colour: Blue
Tube Length: 1.0" - 25.40mm
ID: 0.089" - 2.26mm
OD: 0.109" - 2.77mm
12G Blue Precision Tip 1.5"
12G Blue Precision Tip 1.5"
12G Blue Precision Tip 1.5"
Part Code: AD712150PK
Hub Colour: Blue
Tube Length: 1.5" - 38.10mm
ID: 0.089" - 2.26mm
OD: 0.109" - 2.77mm
12G Blue Precision Tip 2"
12G Blue Precision Tip 1.5"
13G Red Precision tip 1/4"
Part Code: AD712200PK
Hub Colour: Blue
Tube Length: 2.0" - 50.80mm
ID: 0.089" - 2.26mm
OD: 0.109" - 2.77mm
13G Red Precision tip 1/4"
12G Blue Precision Tip 1.5"
13G Red Precision tip 1/4"
Part Code AD713025PK
Hub Colour: Red
Tube Length: 0.25" - 6.35mm
ID: 0.070" - 1.78mm
OD: 0.100" - 2.54mm
13G Red Precision tip 1/2"
13G Red Precision tip 1/2"
13G Red Precision tip 1/2"
Part Code AD713050PK
Hub Colour: Red
Tube Length: 0.50" - 12.70mm
ID: 0.070" - 1.78mm
OD: 0.100" - 2.54mm
13G Red Precision tip 1"
13G Red Precision tip 1/2"
13G Red Precision tip 1/2"
Part Code AD713100PK
Tube Hub Colour: Red
Tube Length: 1.0" - 25.40mm
ID: 0.070" - 1.78mm
OD: 0.100" - 2.54mm
13G RED Precision Tip 1.5"
13G Red Precision tip 1/2"
13G RED Precision Tip 1.5"
Part Code AD713150PK
Hub Colour: Red
Tube Length: 1.5" - 38.10mm
ID: 0.070" - 1.78mm
OD: 0.100" - 2.54mm
13G Red Precision Tip 2"
14G Olive Precision TiP 1/4"
13G RED Precision Tip 1.5"
Part Code AD713200PK
Hub Colour: Red
Tube Length: 2.0" - 50.80mm
ID: 0.070" - 1.78mm
OD: 0.100" - 2.54mm
14G Olive Precision TiP 1/4"
14G Olive Precision TiP 1/4"
14G Olive Precision TiP 1/4"
Part Code AD714025PK
Hub Colour: Olive
Tube Length: 0.25" - 6.35mm
ID: 0.060" - 1.55mm
OD: 0.072" - 1.83mm
14G OLIVE PRECISION TIP 1/2"
14G Olive Precision TiP 1/4"
14G Olive Precision TiP 1/4"
Part Code AD714050PK
Hub Colour: Olive
Tube Length: 0.50" - 12.7mm
ID: 0.060" - 1.55mm
OD: 0.072" - 1.83mm
14G OLIVE PRECISION TIP 1"
14G OLIVE PRECISION TIP 1.5"
14G OLIVE PRECISION TIP 1.5"
Part Code AD714100PK
Hub Colour: Olive
Tube Length: 1.00" - 25.4mm
ID: 0.060" - 1.55mm
OD: 0.072" - 1.83mm
14G OLIVE PRECISION TIP 1.5"
14G OLIVE PRECISION TIP 1.5"
14G OLIVE PRECISION TIP 1.5"
Part Code AD714150PK
Hub Colour: Olive
Tube Length: 1.50" - 38.1mm
ID: 0.060" - 1.55mm
OD: 0.072" - 1.83mm
14G OLIVE PRECISION TIP 2"
14G OLIVE PRECISION TIP 1.5"
15G Amber PRECISION TIP 1/4"
Part Code AD714200PK
Hub Colour: Olive
Tube Length: 2.0" -50.8mm
ID: 0.060" - 1.55mm
OD: 0.072" - 1.83mm
15G Amber PRECISION TIP 1/4"
15G Amber PRECISION TIP 1/4"
15G Amber PRECISION TIP 1/4"
Part Code AD715025PK
Hub Colour: Amber
Tube Length: 0.25" - 6.35mm
ID: 0.054" - 1.37mm
OD: 0.065" - 1.65mm
15G AMBER PRECISION TIP 1/2"
15G Amber PRECISION TIP 1/4"
15G AMBER PRECISION TIP 1/2"
Part Code AD715050PK
Hub Colour: Amber
Tube Length: 0.50" - 12.7mm
ID: 0.054" - 1.37mm
OD: 0.065" - 1.65mm
15G AMBER PRECISION TIP 1"
15G Amber PRECISION TIP 1/4"
15G AMBER PRECISION TIP 1/2"
Part Code AD715100PK
Hub Colour: Amber
Tube Length: 1.0" - 25.4mm
ID: 0.054" - 1.37mm
OD: 0.065" - 1.65mm
15G AMBER PRECISION TIP 1.5"
15G AMBER PRECISION TIP 1.5"
15G AMBER PRECISION TIP 1.5"
Part Code AD715150PK
Hub Colour: Amber
Tube Length: 1.5" - 38.1mm
ID: 0.054" - 1.37mm
OD: 0.065" - 1.65mm
15G AMBER PRECISION TIP 2"
15G AMBER PRECISION TIP 1.5"
15G AMBER PRECISION TIP 1.5"
Part Code AD715100PK
Hub Colour: Amber
Tube Length: 2.0" - 50.8mm
ID: 0.054" - 1.37mm
OD: 0.065" - 1.65mm
16G Grey PRECISION TIP 1/4"
15G AMBER PRECISION TIP 1.5"
16G Grey PRECISION TIP 1/4"
Part Code AD716025PK
Hub Colour: Grey
Tube Length: 0.25" - 6.35mm
ID: 0.047" - 1.19mm
OD: 0.058" - 1.45mm
16G GREY PRECISION TIP 1/2"
16G GREY PRECISION TIP 1/2"
16G Grey PRECISION TIP 1/4"
Part Code AD716050PK
Hub Colour: Grey
Tube Length: 0.50" - 12.7mm
ID: 0.047" - 1.19mm
OD: 0.058" - 1.45mm
16G GREY PRECISION TIP 1"
16G GREY PRECISION TIP 1/2"
16G GREY PRECISION TIP 1.5"
Part Code AD716100PK
Hub Colour: Grey
Tube Length: 1.0" - 25.4mm
ID: 0.047" - 1.19mm
OD: 0.058" - 1.45mm
16G GREY PRECISION TIP 1.5"
16G GREY PRECISION TIP 1/2"
16G GREY PRECISION TIP 1.5"
Part Code AD716150PK
Hub Colour: Grey
Tube Length: 1.5" - 38.1mm
ID: 0.047" - 1.19mm
OD: 0.058" - 1.45mm
16G GREY PRECISION TIP 2.0"
17G Lt. Brown PRECISION TIP 1/4"
17G Lt. Brown PRECISION TIP 1/4"
Part Code AD716200PK
Hub Colour: Grey
Tube Length: 2.0" - 50.8mm
ID: 0.047" - 1.19mm
OD: 0.058" - 1.45mm
17G Lt. Brown PRECISION TIP 1/4"
17G Lt. Brown PRECISION TIP 1/4"
17G Lt. Brown PRECISION TIP 1/4"
Part Code AD717025PK
Hub Colour: Light Brown
Tube Length: 0.25" - 6.35mm
ID: 0.041" - 1.04mm
OD: 0.060" - 1.50mm
17G LT. BROWN PRECISION TIP 1/2"
17G Lt. Brown PRECISION TIP 1/4"
17G LT. BROWN PRECISION TIP 1/2"
Part Code AD717050PK
Hub Colour: Light Brown
Tube Length: 0.50" - 12.7mm
ID: 0.041" - 1.04mm
OD: 0.060" - 1.50mm
17G LT. BROWN PRECISION TIP 1"
17G LT. BROWN PRECISION TIP 1.5"
17G LT. BROWN PRECISION TIP 1/2"
Part Code AD717100PK
Hub Colour: Light Brown
Tube Length: 1.0" - 25.4mm
ID: 0.041" - 1.04mm
OD: 0.060" - 1.50mm
17G LT. BROWN PRECISION TIP 1.5"
17G LT. BROWN PRECISION TIP 1.5"
17G LT. BROWN PRECISION TIP 1.5"
Part Code AD717150PK
Hub Colour: Light Brown
Tube Length: 1.5" - 38.1mm
ID: 0.041" - 1.04mm
OD: 0.060" - 1.50mm
17G LT. BROWN PRECISION TIP 2"
17G LT. BROWN PRECISION TIP 1.5"
17G LT. BROWN PRECISION TIP 1.5"
Part Code AD717200PK
Hub Colour: Light Brown
Tube Length: 2.0" - 50.8mm
ID: 0.041" - 1.04mm
OD: 0.060" - 1.50mm
18G GREEN PRECISION TIP 1/4"
18G GREEN PRECISION TIP 1/4"
18G GREEN PRECISION TIP 1/4"
Part Code AD718025PK
Hub Colour: Green
Tube Length: 0.25" - 6.35mm
ID: 0.033" - 0.84mm
OD: 0.050" - 1.27mm
18G GREEN PRECISION TIP 1/2"
18G GREEN PRECISION TIP 1/4"
18G GREEN PRECISION TIP 1/4"
Part Code AD718050PK
Hub Colour: Green
Tube Length: 0.50" - 12.7mm
ID: 0.033" - 0.84mm
OD: 0.050" - 1.27mm
18G GREEN PRECISION TIP 1"
18G GREEN PRECISION TIP 1/4"
18G GREEN PRECISION TIP 1.5"
Part Code AD718100PK
Hub Colour: Green
Tube Length: 1.0" - 25.4mm
ID: 0.033" - 0.84mm
OD: 0.050" - 1.27mm
18G GREEN PRECISION TIP 1.5"
18G GREEN PRECISION TIP 1.5"
18G GREEN PRECISION TIP 1.5"
Part Code AD718150PK
Hub Colour: Green
Tube Length: 1.5" - 38.1mm
ID: 0.033" - 0.84mm
OD: 0.050" - 1.27mm
18G GREEN PRECISION TIP 2"
18G GREEN PRECISION TIP 1.5"
19G BROWN PRECISION TIP 1/4"
Part Code AD718200PK
Hub Colour: Green
Tube Length: 2.0" - 50.8mm
ID: 0.033" - 0.84mm
OD: 0.050" - 1.27mm
19G BROWN PRECISION TIP 1/4"
18G GREEN PRECISION TIP 1.5"
19G BROWN PRECISION TIP 1/4"
Part Code AD719025PK
Hub Colour: Brown
Tube Length: 0.25" - 6.35mm
ID: 0.027" - 0.70mm
OD: 0.041" - 1.05mm
19G BROWN PRECISION TIP 1/2"
19G BROWN PRECISION TIP 1/2"
19G BROWN PRECISION TIP 1/2"
Part Code AD719050PK
Hub Colour: Brown
Tube Length: 0.50" - 12.7mm
ID: 0.027" - 0.70mm
OD: 0.041" - 1.05mm
19G BROWN PRECISION TIP 1"
19G BROWN PRECISION TIP 1/2"
19G BROWN PRECISION TIP 1/2"
Part Code AD719100PK
Hub Colour: Brown
Tube Length: 1.0" - 25.4mm
ID: 0.027" - 0.70mm
OD: 0.041" - 1.05mm
19G BROWN PRECISION TIP 1.5"
19G BROWN PRECISION TIP 1/2"
19G BROWN PRECISION TIP 1.5"
Part Code AD719150PK
Hub Colour: Brown
Tube Length: 1.5" - 38.1mm
ID: 0.027" - 0.70mm
OD: 0.041" - 1.05mm
19G BROWN PRECISION TIP 2"
20G Pink PRECISION TIP 1/4"
19G BROWN PRECISION TIP 1.5"
Part Code AD719200PK
Hub Colour: Brown
Tube Length: 2.0" - 50.8mm
ID: 0.027" - 0.70mm
OD: 0.041" - 1.05mm
20G Pink PRECISION TIP 1/4"
20G Pink PRECISION TIP 1/4"
20G Pink PRECISION TIP 1/4"
Part Code AD720025PK
Hub Colour: Pink
Tube Length: 0.25" - 6.35mm
ID: 0.023" - 0.61mm
OD: 0.036" - 0.91mm
20G PINK PRECISION TIP 1/2"
20G Pink PRECISION TIP 1/4"
20G Pink PRECISION TIP 1/4"
Part Code AD720050PK
Hub Colour: Pink
Tube Length: 0.50" - 12.7mm
ID: 0.023" - 0.61mm
OD: 0.036" - 0.91mm
20G PINK PRECISION TIP 1"
20G PINK PRECISION TIP 1.5"
20G PINK PRECISION TIP 1.5"
Part Code AD720100PK
Hub Colour: Pink
Tube Length: 1.0" - 25.4mm
ID: 0.023" - 0.61mm
OD: 0.036" - 0.91mm
20G PINK PRECISION TIP 1.5"
20G PINK PRECISION TIP 1.5"
20G PINK PRECISION TIP 1.5"
Part Code AD720150PK
Hub Colour: Pink
Tube Length: 1.5" - 38.1mm
ID: 0.023" - 0.61mm
OD: 0.036" - 0.91mm
20G PINK PRECISION TIP 2"
20G PINK PRECISION TIP 1.5"
21G Purple PRECISION TIP 1/4"
Part Code AD720200PK
Hub Colour: Pink
Tube Length: 2.0" - 50.8mm
ID: 0.023" - 0.61mm
OD: 0.036" - 0.91mm
21G Purple PRECISION TIP 1/4"
21G Purple PRECISION TIP 1/4"
21G Purple PRECISION TIP 1/4"
Part Code AD721025PK
Hub Colour: Purple
Tube Length: 0.25" - 6.35mm
ID: 0.020" - 0.51mm
OD: 0.032" - 0.81mm
21G PURPLE PRECISION TIP 1/2"
21G Purple PRECISION TIP 1/4"
21G PURPLE PRECISION TIP 1/2"
Part Code AD721050PK
Hub Colour: Purple
Tube Length: 0.50" - 12.7mm
ID: 0.020" - 0.51mm
OD: 0.032" - 0.81mm
21G PURPLE PRECISION TIP 1"
21G Purple PRECISION TIP 1/4"
21G PURPLE PRECISION TIP 1/2"
Part Code AD721100PK
Hub Colour: Purple
Tube Length: 1.0" - 25.4mm
ID: 0.020" - 0.51mm
OD: 0.032" - 0.81mm
21G PURPLE PRECISION TIP 1.5"
21G PURPLE PRECISION TIP 1.5"
21G PURPLE PRECISION TIP 1.5"
Part Code AD721150PK
Hub Colour: Purple
Tube Length: 1.5" - 38.1mm
ID: 0.020" - 0.51mm
OD: 0.032" - 0.81mm
21G PURPLE PRECISION TIP 2"
21G PURPLE PRECISION TIP 1.5"
21G PURPLE PRECISION TIP 1.5"
Part Code AD721200PK
Hub Colour: Purple
Tube Length: 2.0" - 50.8mm
ID: 0.020" - 0.51mm
OD: 0.032" - 0.81mm
22G Blue Precision Tip 1/4"
21G PURPLE PRECISION TIP 1.5"
22G Blue Precision Tip 1/4"
Part Code AD722025PK
Hub Colour: Blue
Tube Length: 0.25" - 6.35mm
ID: 0.016" - 0.41mm
OD: 0.028" - 0.71mm
22G BLUE PRECISION TIP 1/2"
22G BLUE PRECISION TIP 1/2"
22G Blue Precision Tip 1/4"
Part Code AD722050PK
Hub Colour: Blue
Tube Length: 0.50" - 12.7mm
ID: 0.016" - 0.41mm
OD: 0.028" - 0.71mm
22G BLUE PRECISION TIP 1"
22G BLUE PRECISION TIP 1/2"
22G BLUE PRECISION TIP 1.5"
Part Code AD722100PK
Hub Colour: Blue
Tube Length: 1.0" - 25.4mm
ID: 0.016" - 0.41mm
OD: 0.028" - 0.71mm
22G BLUE PRECISION TIP 1.5"
22G BLUE PRECISION TIP 1/2"
22G BLUE PRECISION TIP 1.5"
Part Code AD722150PK
Hub Colour: Blue
Tube Length: 1.5" - 38.1mm
ID: 0.016" - 0.41mm
OD: 0.028" - 0.71mm
22G BLUE PRECISION TIP 2"
23G Orange PRECISION TIP 1/4"
23G Orange PRECISION TIP 1/4"
Part Code AD722200PK
Hub Colour: Blue
Tube Length: 2.0" - 50.8mm
ID: 0.016" - 0.41mm
OD: 0.028" - 0.71mm
23G Orange PRECISION TIP 1/4"
23G Orange PRECISION TIP 1/4"
23G Orange PRECISION TIP 1/4"
Part Code AD723025PK
Hub Colour: Orange
Tube Length: 0.25" - 6.35mm
ID: 0.013" - 0.33mm
OD: 0.025" - 0.64mm
23G ORANGE PRECISION TIP 1/2"
23G Orange PRECISION TIP 1/4"
23G ORANGE PRECISION TIP 1/2"
Part Code AD723050PK
Hub Colour: Orange
Tube Length: 0.50" - 12.7mm
ID: 0.013" - 0.33mm
OD: 0.025" - 0.64mm
23G ORANGE PRECISION TIP 1"
23G ORANGE PRECISION TIP 1.5"
23G ORANGE PRECISION TIP 1/2"
Part Code AD723100PK
Hub Colour: Orange
Tube Length: 1.0" - 25.4mm
ID: 0.013" - 0.33mm
OD: 0.025" - 0.64mm
23G ORANGE PRECISION TIP 1.5"
23G ORANGE PRECISION TIP 1.5"
23G ORANGE PRECISION TIP 1.5"
Part Code AD723150PK
Hub Colour: Orange
Tube Length: 1.5" - 38.1mm
ID: 0.013" - 0.33mm
OD: 0.025" - 0.64mm
23G ORANGE PRECISION TIP 2"
23G ORANGE PRECISION TIP 1.5"
23G ORANGE PRECISION TIP 1.5"
Part Code AD723200PK
Hub Colour: Orange
Tube Length: 2.0" - 50.8mm
ID: 0.013" - 0.33mm
OD: 0.025" - 0.64mm
24G Grey PRECISION TIP 1/4"
24G Grey PRECISION TIP 1/4"
24G Grey PRECISION TIP 1/4"
Part Code AD724025PK
Hub Colour: Dk. Red
Tube Length: 0.25" - 6.35mm
ID: 0.011" - 0.27mm
OD: 0.021" - 0.53mm
24G GREY PRECISION TIP 1/2"
24G Grey PRECISION TIP 1/4"
24G Grey PRECISION TIP 1/4"
Part Code AD724050PK
Hub Colour: Dk. Red
Tube Length: 0.50" - 12.7mm
ID: 0.011" - 0.27mm
OD: 0.021" - 0.53mm
24G GREY PRECISION TIP 1"
24G Grey PRECISION TIP 1/4"
24G GREY PRECISION TIP 1.5"
Part Code AD724100PK
Hub Colour: Dk. Red
Tube Length: 1.0" - 25.4mm
ID: 0.011" - 0.27mm
OD: 0.021" - 0.53mm
24G GREY PRECISION TIP 1.5"
24G GREY PRECISION TIP 1.5"
24G GREY PRECISION TIP 1.5"
Part Code AD724150PK
Hub Colour: Dk. Red
Tube Length: 1.5" - 38.1mm
ID: 0.011" - 0.27mm
OD: 0.021" - 0.53mm
24G GREY PRECISION TIP 2"
24G GREY PRECISION TIP 1.5"
25G Red PRECISION TIP 1/4"
Part Code AD724200PK
Hub Colour: Dk. Red
Tube Length: 2.0" - 50.8mm
ID: 0.011" - 0.27mm
OD: 0.021" - 0.53mm
25G Red PRECISION TIP 1/4"
24G GREY PRECISION TIP 1.5"
25G Red PRECISION TIP 1/4"
Part Code AD724025PK
Hub Colour: Red
Tube Length: 0.25" - 6.35mm
ID: 0.010" - 0.25mm
OD: 0.020" - 0.51mm
25G RED PRECISION TIP 1/2"
25G RED PRECISION TIP 1/2"
25G RED PRECISION TIP 1/2"
Part Code AD724050PK
Hub Colour: Red
Tube Length: 0.50" - 12.7mm
ID: 0.010" - 0.25mm
OD: 0.020" - 0.51mm
25G RED PRECISION TIP 1"
25G RED PRECISION TIP 1/2"
25G RED PRECISION TIP 1/2"
Part Code AD724100PK
Hub Colour: Red
Tube Length: 1.0" - 25.4mm
ID: 0.010" - 0.25mm
OD: 0.020" - 0.51mm
25G RED PRECISION TIP 1.5"
25G RED PRECISION TIP 1/2"
25G RED PRECISION TIP 1.5"
Part Code AD724150PK
Hub Colour: Red
Tube Length: 1.5" - 38.1mm
ID: 0.010" - 0.25mm
OD: 0.020" - 0.51mm
25G RED PRECISION TIP 2"
25G RED PRECISION TIP 1.5"
Part Code AD724200PK
Hub Colour: Red
Tube Length: 2.0" - 50.8mm
ID: 0.010" - 0.25mm
OD: 0.020" - 0.51mm
26G Peach PRECISION TIP 1/4"
Part Code AD726025PK
Hub Colour: Peach
Tube Length: 0.25" - 6.35mm
ID: 0.009" - 0.24mm
OD: 0.018" - 0.45mm
26G Peach PRECISION TIP 0.50"
Part Code AD726050PK
Hub Colour: Peach
Tube Length: 0.50" - 12.7mm
ID: 0.009" - 0.24mm
OD: 0.018" - 0.45mm
27G Clear PRECISION TIP 0.25"
27G Clear PRECISION TIP 0.25"
27G Clear PRECISION TIP 0.25"
Part Code AD726100PK
Hub Colour: Peach
Tube Length: 1.0" - 25.4mm
ID: 0.009" - 0.24mm
OD: 0.018" - 0.45mm
26G PEACH PRECISION TIP 1.5"
27G Clear PRECISION TIP 0.25"
27G Clear PRECISION TIP 0.25"
Part Code AD726150PK
Hub Colour: Peach
Tube Length: 1.5" - 38.1mm
ID: 0.009" - 0.24mm
OD: 0.018" - 0.45mm
26G PEACH PRECISION TIP 2.0"
27G Clear PRECISION TIP 0.25"
27G Clear PRECISION TIP 0.25"
Part Code AD726200PK
Hub Colour: Peach
Tube Length: 2.0" -50.8mm
ID: 0.009" - 0.24mm
OD: 0.018" - 0.45mm
27G Clear PRECISION TIP 0.25"
27G Clear PRECISION TIP 0.25"
27G Clear PRECISION TIP 0.25"
Part Code AD727025PK
Hub Colour: Clear
Tube Length: 0.25" - 6.35mm
ID: 0.008" - 0.20mm
OD: 0.016" - 0.41mm
27G CLEAR PRECISION TIP 0.50"
27G Clear PRECISION TIP 0.25"
27G CLEAR PRECISION TIP 0.50"
Part Code AD727050PK
Hub Colour: Clear
Tube Length: 0.50" - 12.7mm
ID: 0.008" - 0.20mm
OD: 0.016" - 0.41mm
27G CLEAR PRECISION TIP 1.0"
27G Clear PRECISION TIP 0.25"
27G CLEAR PRECISION TIP 0.50"
Part Code AD727100PK
Hub Colour: Clear
Tube Length: 1.0" - 25.4mm
ID: 0.008" - 0.20mm
OD: 0.016" - 0.41mm
27G CLEAR PRECISION TIP 1.5"
28G White PRECISION TIP 0.25"
27G CLEAR PRECISION TIP 1.5"
Part Code AD727150PK
Hub Colour: Clear
Tube Length: 1.5" - 38.1mm
ID: 0.008" - 0.20mm
OD: 0.016" - 0.41mm
27G CLEAR PRECISION TIP 2.0"
28G White PRECISION TIP 0.25"
27G CLEAR PRECISION TIP 1.5"
Part Code AD727200PK
Hub Colour: Clear
Tube Length: 2.0" - 50.8mm
ID: 0.008" - 0.20mm
OD: 0.016" - 0.41mm
28G White PRECISION TIP 0.25"
28G White PRECISION TIP 0.25"
28G White PRECISION TIP 0.25"
Part Code AD728025PK
Hub Colour: White
Tube Length: 0.25" - 6.35mm
ID: 0.007" - 0.18mm
OD: 0.014" - 0.36mm
28G White PRECISION TIP 0.50"
28G White PRECISION TIP 0.50"
28G White PRECISION TIP 0.25"
Part Code AD728050PK
Hub Colour: White
Tube Length: 0.50" - 12.7mm
ID: 0.007" - 0.18mm
OD: 0.014" - 0.36mm
28G White PRECISION TIP 1.0"
28G White PRECISION TIP 0.50"
28G White PRECISION TIP 1.0"
Part Code AD728100PK
Hub Colour: White
Tube Length: 1.0" - 25.4mm
ID: 0.007" - 0.18mm
OD: 0.014" - 0.36mm
28G White PRECISION TIP 1.5"
28G White PRECISION TIP 0.50"
28G White PRECISION TIP 1.0"
Part Code AD728150PK
Hub Colour: White
Tube Length: 1.5" - 38.1mm
ID: 0.007" - 0.18mm
OD: 0.014" - 0.36mm
28G WHITE PRECISION TIP 2.0"
30G Lavender PRECISION TIP 0.25"
30G Lavender PRECISION TIP 0.25"
Part Code AD728200PK
Hub Colour: White
Tube Length: 2.0" - 50.8mm
ID: 0.007" - 0.18mm
OD: 0.014" - 0.36mm
30G Lavender PRECISION TIP 0.25"
30G Lavender PRECISION TIP 0.25"
30G Lavender PRECISION TIP 0.25"
Part Code AD730025PK
Hub Colour: Lavender
Tube Length: 0.25" - 6.35mm
ID: 0.006" - 0.15mm
OD: 0.012" - 0.30mm
30G LAVENDER PRECISION TIP 0.50"
30G Lavender PRECISION TIP 0.25"
30G LAVENDER PRECISION TIP 0.50"
Part Code AD730050PK
Hub Colour: Lavender
Tube Length: 0.50" - 12.7mm
ID: 0.006" - 0.15mm
OD: 0.012" - 0.30mm
30G LAVENDER PRECISION TIP 1.0"
30G LAVENDER PRECISION TIP 1.0"
30G LAVENDER PRECISION TIP 0.50"
Part Code AD730100PK
Hub Colour: Lavender
Tube Length: 1.0" - 25.4mm
ID: 0.006" - 0.15mm
OD: 0.012" - 0.30mm
30G LAVENDER PRECISION TIP 1.5"
30G LAVENDER PRECISION TIP 1.0"
30G LAVENDER PRECISION TIP 1.5"
Part Code AD730150PK
Hub Colour: Lavender
Tube Length: 1.5" - 38.1mm
ID: 0.006" - 0.15mm
OD: 0.012" - 0.30mm
32G Yellow PRECISION TIP 0.25"
30G LAVENDER PRECISION TIP 1.0"
30G LAVENDER PRECISION TIP 1.5"
Part Code AD732025PK
Colour: Yellow
Tube Length: 0.25" - 6.35mm
ID: 0.004" - 0.10mm
OD: 0.009" - 0.23mm
32G Yellow PRECISION TIP 0.50"
32G Yellow PRECISION TIP 0.50"
32G Yellow PRECISION TIP 0.50"
Part Code AD732050PK
Colour: Yellow
Tube Length: 0.50" - 12.7mm
ID: 0.004" - 0.10mm
OD: 0.009" - 0.23mm
32G Yellow PRECISION TIP 1.0"
32G Yellow PRECISION TIP 0.50"
32G Yellow PRECISION TIP 0.50"
Part Code AD732100PK
Colour: Yellow
Tube Length: 1.0" - 25.4mm
ID: 0.004" - 0.10mm
OD: 0.009" - 0.23mm
34G Lime PRECISION TIP 0.25"
32G Yellow PRECISION TIP 0.50"
34G Lime PRECISION TIP 0.25"
Part Code AD734025PK
Colour: Lime
Tube Length: 0.25" - 6.35mm
ID: 0.003" - 0.08mm
OD: 0.008" - 0.21mm
34G Lime PRECISION TIP 0.50"
34G Lime PRECISION TIP 0.50"
34G Lime PRECISION TIP 0.25"
Part Code AD734050PK
Colour: Lime
Tube Length: 0.50" - 12.7mm
ID: 0.003" - 0.08mm
OD: 0.008" - 0.21mm
34G Lime PRECISION TIP 1.0"
34G Lime PRECISION TIP 0.50"
34G Lime PRECISION TIP 1.0"
Part Code AD734100PK
Colour: Lime
Tube Length: 1.0" - 25.4mm
ID: 0.003" - 0.08mm
OD: 0.008" - 0.21mm
Assorted Tip Kit In Case
34G Lime PRECISION TIP 0.50"
34G Lime PRECISION TIP 1.0"
Part Code DCK600
Colours: Assorted
Tube Lengths: 0.50" - 12.7mm
ID: 1.60mm to 0.08mm
OD: 1.83mm - 0.23mm
Smooth Flow Tapered Tips
Polyethylene Molded Luer Lock Tips
Tapered tips are typically used with high viscosity pastes and gels as well as most other liquids. The range has 16 different diameter gauge sizes from 10 to 32. Dispense solder pastes, fluxes, gels, epoxies, grease, compounds, particle filled materials, adhesives, silicones, sealants, UV cure, Cyanoacrylates and RTV's. With a double helix thread and universal luer lock to provide secure connection to industrial syringes or dispense valves.
A smooth internal fluid path designed reduces turbulence flow, prevents air entrapment and fluid dripping caused by back pressure built up. The flash free orifice ensures accurate and repeatable dispensing. Tapered tips are made of polyethylene with UV-light block additive.
We ship any quantity of these products using tracked and insured couriers direct from our Milton Keynes UK warehouse facility for fast delivery around the world. ADL tapered tips are certified industrial grade safe for high pressures and silicone-free materials. All products provide high levels of consistency from tip to tip. Supplied in sealed boxes of 50 with product labels and batch codes for traceability.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
All tapered dispensing tips are available to order securely from our web shops direct from stock.
POLYETHYLENE MOLDED LUER LOCK TIPS
10G LIME TAPER TIP
Part Code: AD10TTN-B
Material: Polyethylene
Colour: Lime
ID: 0.118" - 3.0mm
Length: 1.25" - 31.75mm
11G Yellow Taper Tip
Part Code: AD11TTN-B
Material: Polyethylene
Colour: Yellow
ID: 0.098" - 2.5mm
Length: 1.25" - 31.75mm
13G Blue Taper Tip
Part Code: AD13TTN-B
Material: Polyethylene
Colour: Blue
ID: 0.079" - 2.0mm
Length: 1.25" - 31.75mm
14G Olive Taper Tip
Part Code: AD14TTN-B
Material: Polyethylene
Colour: Olive
ID: 0.063" - 1.60mm
Length: 1.25" - 31.75mm
15G Amber Taper Tip
Part Code: AD15TTN-B
Material: Polyethylene
Colour: Amber
ID: 0.054" - 1.37mm
Length: 1.25" - 31.75mm
16G Grey Taper Tip
Part Code: AD16TTN-B
Material: Polyethylene
Colour: Grey
ID: 0.048" - 1.22mm
Length: 1.25" - 31.75mm
18G Green Taper Tip
18G Green Taper Tip
Part Code: AD18TTN-B
Material: Polyethylene
Colour: Green
0.033" - 0.84mm
Length: 1.25" - 31.75mm
20G Pink Taper Tip
18G Green Taper Tip
Part Code: AD20TTN-B
Material: Polyethylene
Colour: Pink
ID: 0.024" - 0.61mm
Length: 1.25" - 31.75mm
21G Purple Taper Tip
Part Code: AD21TTN-B
Material: Polyethylene
Colour: Purple
ID: 0.020" - 0.51mm
Length: 1.25" - 31.75mm
22G Blue Taper Tip
23G Orange Taper Tip
Part Code: AD22TTN-B
Material: Polyethylene
Colour: Blue
ID: 0.016" - 0.41mm
Length: 1.25" - 31.75mm
23G Orange Taper Tip
23G Orange Taper Tip
23G Orange Taper Tip
Part Code: AD23TTN-B
Material: Polyethylene
Colour: Orange
ID: 0.013" - 0.33mm
Length: 1.25" - 31.75mm
25G Red Taper Tip
23G Orange Taper Tip
23G Orange Taper Tip
Part Code: AD25TTN-B
Material: Polyethylene
Colour: Red
ID: 0.010" - 0.25mm
Length: 1.25" - 31.75mm
26G Orange Taper Tip
30G Lavender Taper Tip
26G Orange Taper Tip
Part Code: AD26TTN-B
Material: Polyethylene
Colour: Orange
ID: 0.009" - 0.22mm
Length: 1.25" - 31.75mm
27G Clear Taper Tip
30G Lavender Taper Tip
26G Orange Taper Tip
Part Code: AD27TTN-B
Material: Polyethylene
Colour: Clear
ID: 0.008" - 0.20mm
Length: 1.25" - 31.75mm
30G Lavender Taper Tip
30G Lavender Taper Tip
30G Lavender Taper Tip
Part Code: AD30TTN-B
Material: Polyethylene
Colour: Lavender
ID: 0.006" - 0.15mm
Length: 1.25" - 31.75mm
32G Yellow Taper Tip
30G Lavender Taper Tip
Part Code: AD32TTN-B
Material: Polyethylene
Colour: Yellow
ID: 0.004" - 0.10mm
Length: 1.25" - 31.75mm
Tapered Tip Kit
Tapered Tip Kit
Part Code: SA7400
Colours: Assorted
Tube Lengths: 1.25" - 31.75mm
ID: 1.60mm to 0.10mm
Material: Polyethylene
Tapered Tip Kit
Tapered Tip Kit
Part Code: SA7782
Colours: Assorted
Tube Lengths: 1.25" - 31.75mm
ID: 1.60mm to 0.10mm
Material: Polyethylene
Precision Angled Bent Tips
Additional Information
This is a long form text area designed for your content that you can fill up with as many words as your heart desires. You can write articles, long mission statements, company policies, executive profiles, company awards/distinctions, office locations, shareholder reports, whitepapers, media mentions and other pieces of content that don’t fit into a shorter, more succinct space.
Articles – Good topics for articles include anything related to your company – recent changes to operations, the latest company softball game – or the industry you’re in. General business trends (think national and even international) are great article fodder, too.
Mission statements – You can tell a lot about a company by its mission statement. Don’t have one? Now might be a good time to create one and post it here. A good mission statement tells you what drives a company to do what it does.
Company policies – Are there company policies that are particularly important to your business? Perhaps your unlimited paternity/maternity leave policy has endeared you to employees across the company. This is a good place to talk about that.
Executive profiles – A company is only as strong as its executive leadership. This is a good place to show off who’s occupying the corner offices. Write a nice bio about each executive that includes what they do, how long they’ve been at it, and what got them to where they are.
All angled dispensing tips are available to order securely from our web shops direct from stock.
